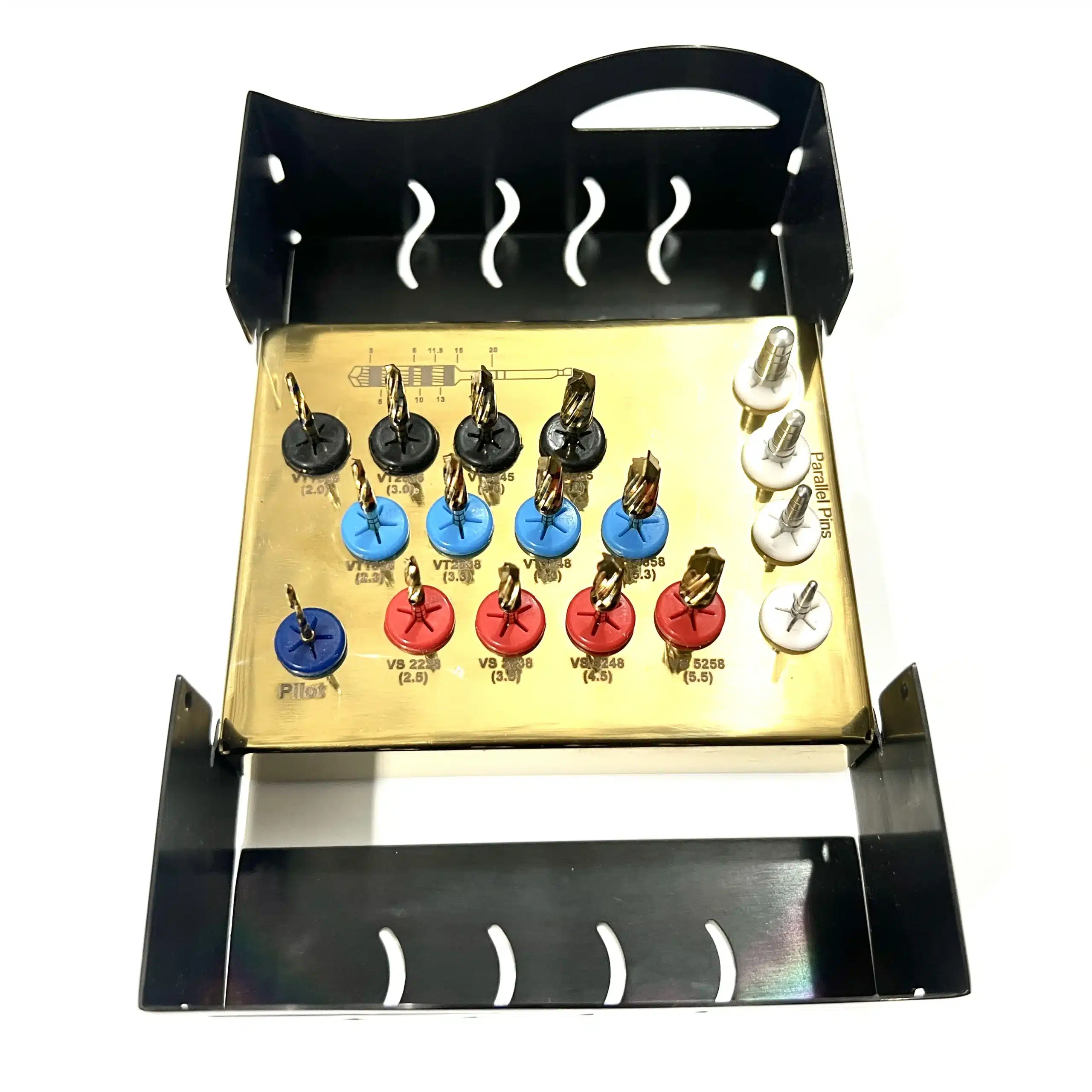

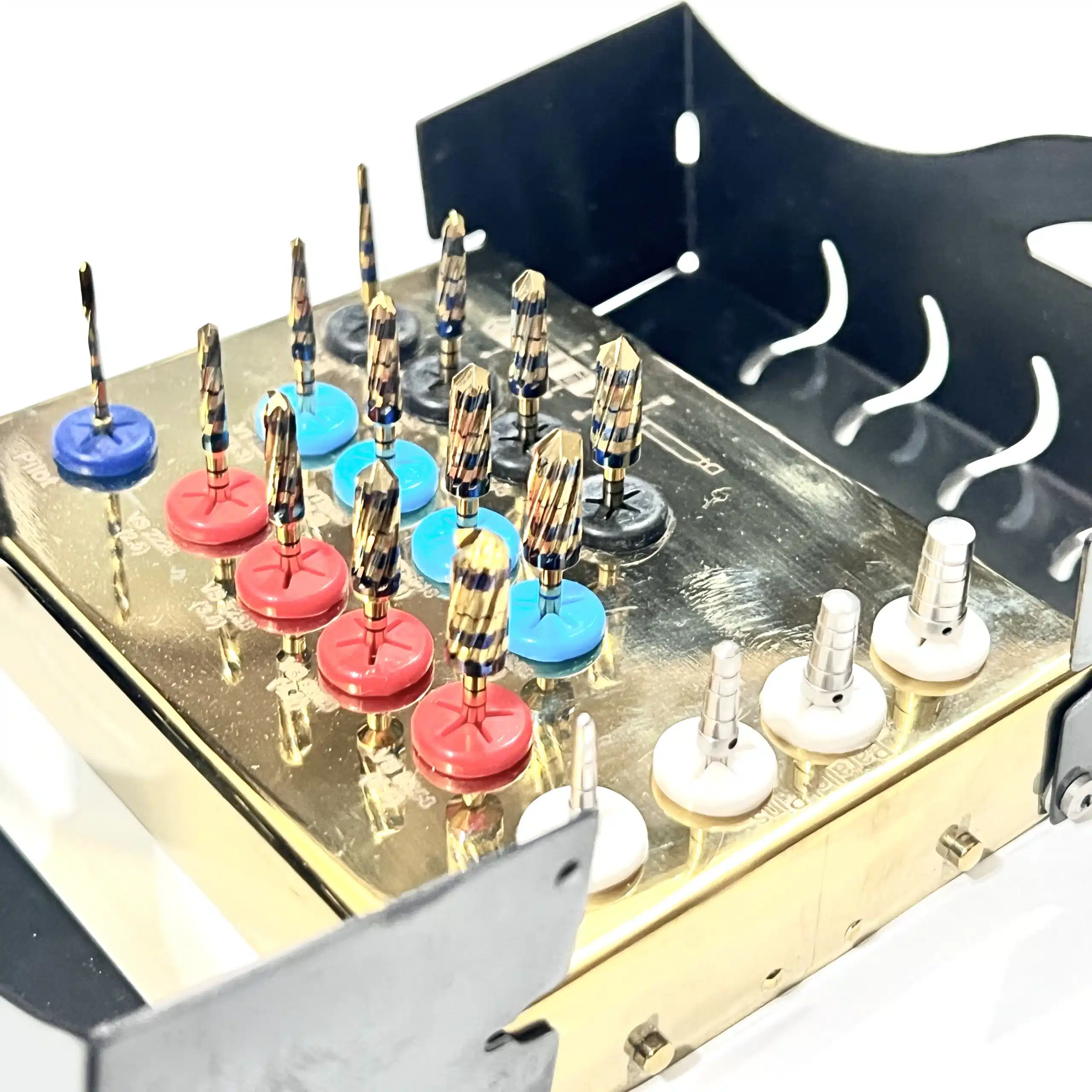

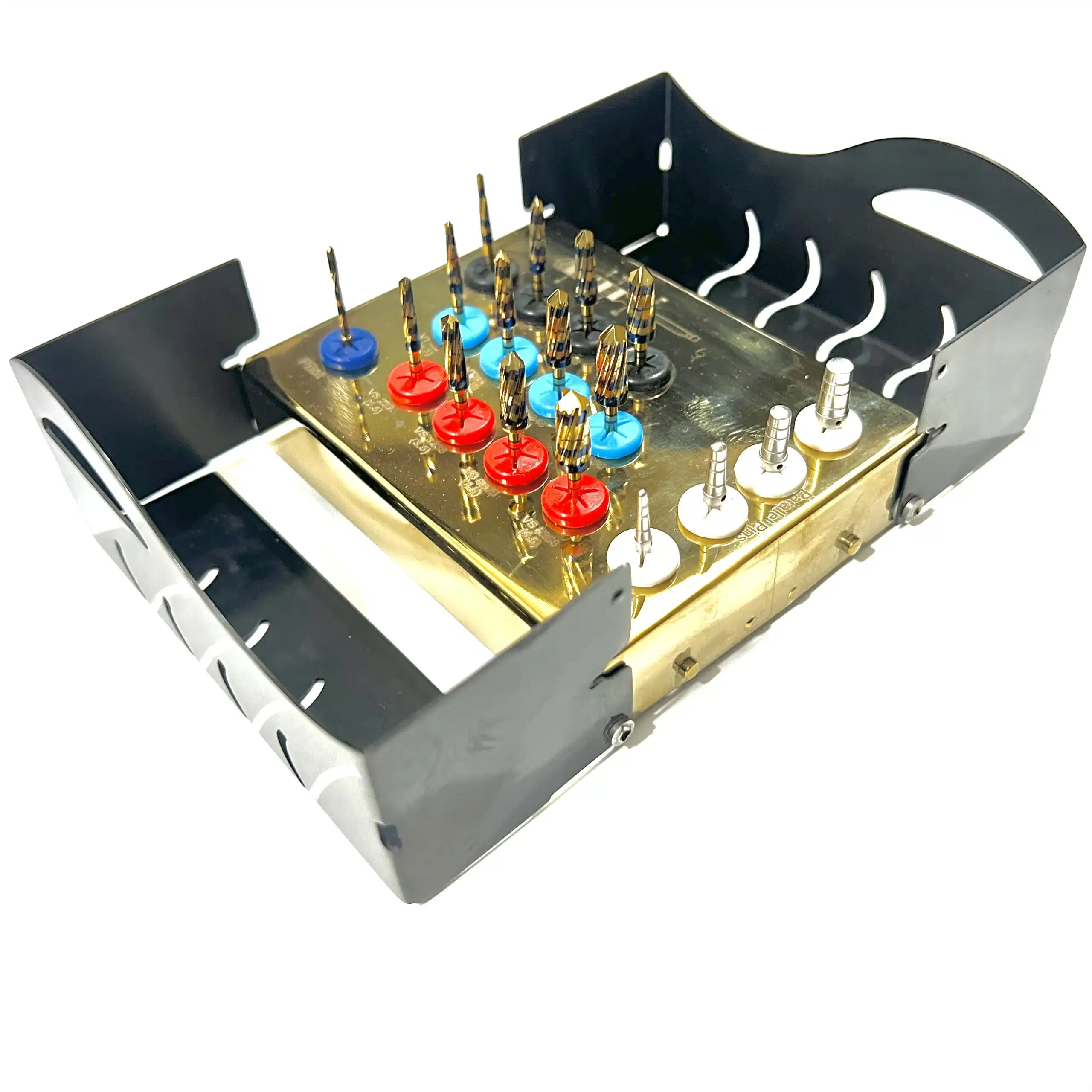

Universal Osseodensification Bur Kit
Osseodensification Burs
including Short Burs is the best value for your practice if you use multiple implant systems. These Densah type burs use external irrigation and are compatible with all available sized implants upto 6.0 leaving you with the flexibility to do more with less. The flute design allows the bur to work in 2 modes:
- Cutting Mode (Clockwise rotation) at 800-1500 RPM.
- Densifying Mode (Counter-Clockwise rotation) at 800-1500 RPM.
These burs use external irrigation and are compatible with all available sized implants up to 6.0 leaving you with the flexibility to do more with less. The proprietary flute design allows the bur to work in 2 modes:
Mode #1 : Cutting Mode (Clockwise rotation) at 800-1500 RPMs
Mode# 2 : Densifying Mode (Counterclockwise rotation) at 800-1500 RPMs
Details:
Drill Sizes:
(1525) 2.0 mm,(2535) 3.0 mm, (3545) 4.0 mm, (4555) 5.0 mm.
(1828) 2.3 mm,(2838) 3.3 mm, (3848) 4.3 mm, (4858) 5.3 mm.
(2228) 2.5 mm,(3238) 3.5 mm, (4248) 4.5 mm, (5258) 5.5 mm.
Short Tapered Pilot Drill : 1.8mm
Burs are externally irrigated
Drill speeds of 800-1500 Rmp.
Why Choose us
– Competitive price and superior quality- Accept trial order and wholesale, sample available
How Our Products are Premium?
Raw material to Final packed Products Our Staff keep Eyes on every Detail precisely and Make sure that Our Products are What We Claim them to Be and that’s “Premium”
Silent Features :
Osseodensification Burs Marking
Osseodensification Burs are externally irrigated and designed to be used at drill speeds of 800-1500 rpm. They are marked with laser markings1 from 3-20 mm depth. Osseodensification Burs have a tapered geometry; catalog number is a reflection of their minor and major diameter dimension. E.g., Osseodensification Bur VT3848 has a (minor-diameter) of 3.8 mm and a coronal (major-diameter) of 4.8 mm at 11.5 mm laser mark with an average-diameter of (4.3 mm) at the 8 mm laser mark which becomes the crestal diameter for short implants length ≤ 8 mm.
NOTE: Cutting and Densifying must be done under constant water irrigation. A pumping motion is required to prevent over heating. Surgical drills and burs should be replaced every 12-20 osteotomies or sooner when they are dulled or worn.
Osseodensification Burs Drilling DepthMeasure the drilling depth of the Osseodensification Bur from the widest
part of its tip to the indication line. Regardless of the Osseodensification Bur
diameter, the maximum additional tip depth is 1.0 mm.
FAQ
Q1.What is your terms of packing?
A: Generally, we pack our goods in pp bags and cartons.
Q2. What is your terms of payment?
A: 100% as deposit before delivery.
Q3.What is your time of dispatching product?
A: 1-2 Business days.
Q4.Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
